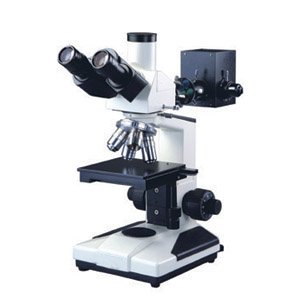

Qualitech Upright Metallurgical Microscope - Model : QS2003A |
This
microscope is a high performing product that comes with a vertical
photo-tube for micro photography, and has a trinocular body, which is
rotatable at 360degree and binocular siedentopf inclined at 30 degree.
These attractive features along with many others enables it to work
with precision in its application. Available at most reasonable price,
our upright metallurgical microscope comes with following
specifications. |
|
»
Qualitech Upright Metallurgical
Microscope - Model : QS2003A |
TRINOCULAR
OBSERVATION HEAD
- Trinocular body rotatable at 360degree and binocular Siedentopf inclined at 30 degree.
- Vertical phototube for micro photography. Light path selector.
|
EYEPIECE
- Wide field eyepiece 10X (Paired) FOV 18mm
|
OBJECTIVES
- Plan Achromatic 5X
- Plan Achromatic 10X
- Plan Achromatic 40X
- Plan Achromatic 60X
|
MECHANICAL
BODY
-
Co-axial focusing system with large knobs, Pre-focusing lever & tension adjustment ring.
-
Quadruple nosepiece on ball bearing.
-
Mechanical stage is 125mmX130mm and have co-axial controls on ball bearing guide ways.
|
ILLUMINATOR
- The reflected light illuminator has 6V-20W halogen lamp with intensity control knob.
- 6V/20W Halogen tungsten bulb.
STYRO
FOAM
|
|
|
|
|
|

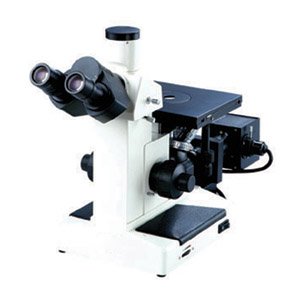

Qualitech Inverted Metallurgical Microscope - Model : QS-17AT |
Offering
a comprehensive range of inverted metallurgical microscopes to suit
diverse needs of industries throughout the world. Manufactured using
advanced technology, these microscopes are provided with binocular
siedentopf inclined at 30 degree & hand rests on both sides. The
specifications of these inverted metallurgical microscopes are given
below. |
|
»
Qualitech Inverted Metallurgical
Microscope - Model : QS-17AT |
TRINOCULAR
OBSERVATION HEAD
- Binocular Siedentopf inclined at 30 degree.
- Phototube for micro photography.
- Diopter adjustment ring on ocular tube.
- Interpupillary distance from 55mm to 75mm.
|
EYEPIECE
- Wide field eyepiece 10X (Paired) , 15X (Paired)
|
OBJECTIVES
INFINITY CORRECTED
- DIN Long Working Distance Plan Achromatic 10X
- DIN Long Working Distance Plan Achromatic 20X
- DIN Long Working Distance Plan Achromatic 40X ( S L )
- DIN Long Working Distance Plan Achromatic 80X ( S L ) Dry
|
MECHANICAL
BODY
- Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring
- Reverse Angle quadruple nosepiece on ball bearing.
- Mechanical stage is 150mmX200mm.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
- Hand rests on both sides.
|
ILLUMINATOR
- The reflected light illuminator has 6V-20W halogen lamp, adjustable brightness.
- 6V/20W Halogen tungsten bulb.
STYRO
FOAM
|
|
|
|
|
|

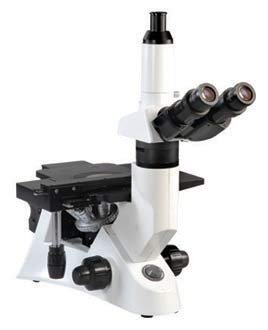

Qualitech Inverted Metallurgical Microscope - Model : QS-100 |
Unveil
an extensive collection of inverted metallurgical
microscopes to fulfill the requirements
of a multitude of industries around the
world. Trinocular observation head of these
microscopes is equipped with binocular siedntopf
inclined at 30 degree and phototube for
photomicrography. These top grade inverted
metallurgical microscopes can be availed
at reasonable rates with the following features. |
|
»
Qualitech Inverted Metallurgical
Microscope - Model : QS-100 |
TRINOCULAR
OBSERVATION HEAD
- Binocular Siedntopf inclined at 30 degree.
- Phototube for photomicrography.
- Diopter adjustment ring on ocular tube.
- Interpupillary distance from 48mm to 75mm.
|
EYEPIECE
- Wide field eyepiece 10X (Paired) FOV 22mm
|
OBJECTIVES
INFINITY CORRECTED
- DIN Long Working Distance Plan Achromatic 4X
- DIN Long Working Distance Plan Achromatic 10X
- DIN Long Working Distance Plan Achromatic 20X
- DIN Long Working Distance Plan Achromatic 40X
|
MECHANICAL
BODY
- Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring
- Reverse Angle quadruple nosepiece on ball bearing.
- Mechanical stage is 160mmX250mm.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
- Hand rests on both sides.
|
ILLUMINATOR
- The reflected light illuminator has 6V-30W halogen lamp, adjustable brightness.
- 6V/30W Halogen tungsten bulb.
STYRO
FOAM
|
|
|
|
|
|
Qualitech Inverted Metallurgical Microscope - Model : QS-M |
The
latest CSIS infinity Optical system. Trinocular observation head of
these microscopes is equipped with binocular siedntopf inclined at 45
degree and phototube for photomicrography. These top grade inverted
metallurgical microscopes can be availed at reasonable rates with the
following features. |
|
»Qualitech Inverted Metallurgical Microscope - Model : QS-M |
TRINOCULAR OBSERVATION HEAD
- Revolving trinocular tube inclined 45°
- Phototube for photomicrography.
- Diopter adjustment ring on ocular tube.
- Interpupillary distance from 54mm to 75mm.
|
EYEPIECE
- Wide field eyepiece 10X (Paired) FOV 22mm
|
OBJECTIVES INFINITY CORRECTED
- DIN Long Working Distance Plan Achromatic 5X
- DIN Long Working Distance Plan Achromatic 10X
- DIN Long Working Distance Plan Achromatic 20X
- DIN Long Working Distance Plan Achromatic 50X
- DIN Long Working Distance Plan Achromatic 80X
|
MECHANICAL BODY
- Polarize unit: Analyzer 360°rotatable, Polarizer and Analyzer can be moved out optics path
- Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring
- Reverse Angle quadruple nosepiece on ball bearing.
- Mechanical stage is 160mmX250mm.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
- Hand rests on both sides.
ILLUMINATOR
- The reflected light illuminator has 12V-50W halogen lamp, adjustable brightness.
- 12V/50W Halogen tungsten bulb.
STYRO FOAM
|
|
|
|
|
|
Qualitech Inverted Metallurgical Microscope - Model : QS-3A |
Offering
a comprehensive range of inverted metallurgical microscopes to suit
diverse needs of industries throughout the world. Manufactured using
advanced technology, these microscopes are provided with binocular head
and hand rest on both sides. The specifications of these inverted
metallurgical microscopes are given below. |
|
» Qualitech Inverted Metallurgical Microscope - Model : QS-3A |
BINOCULAR OBSERVATION HEAD
- Binocular Head.
- Diopter adjustment ring on ocular tube.
- Interpupillary distance from 55mm to 75mm.
|
EYEPIECE
- Wide field eyepiece 10X (Paired) , 12.5X (Paired)
|
OBJECTIVES INFINITY CORRECTED
- DIN Long Working Distance Plan Achromatic 10X
- DIN Long Working Distance Plan Achromatic 40X
- DIN Long Working Distance Plan Achromatic 100X ( Oil )
|
MECHANICAL BODY
- Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring
- Reverse Angle quadruple nosepiece on ball bearing.
- Mechanical stage is 180mmX165mm.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
- Hand rests on both sides.
ILLUMINATOR
- The reflected light illuminator has 6V-15W halogen lamp, adjustable brightness.
- 6V/15W Halogen tungsten bulb.
STYRO FOAM
|
|
|
|
|
|
Qualitech Upright Metallurgical Microscope - Model : QS-101A |
Offering
a comprehensive range of inverted metallurgical microscopes to suit
diverse needs of industries throughout the world. Manufactured using
advanced technology, these microscopes are provided with binocular head
and hand rest on both sides. The specifications of these inverted
metallurgical microscopes are given below. |
|
» Qualitech Upright Metallurgical Microscope - Model : QS-101A |
TRINOCULAR OBSERVATION HEAD
- Trinocular body rotatable at 360degree and binocular Siedentopf inclined at 30 degree.
- Vertical phototube for micro photography. Light path selector.
|
EYEPIECE
- Wide field eyepiece 10X (Paired) FOV 18mm
|
OBJECTIVES
- Plan Achromatic 5X
- Plan Achromatic 10X
- Plan Achromatic 20X
- Plan Achromatic 40X
- Plan Achromatic 80X
|
MECHANICAL BODY
- Co-axial focusing system with large knobs, Pre-focusing lever & tension adjustment ring.
- Quadruple nosepiece on ball bearing.
- Mechanical stage is 274mmX274mm and have co-axial controls on ball bearing guide ways.
ILLUMINATOR
- The reflected light illuminator has 6V-20W halogen lamp with intensity control knob.
- 6V/20W Halogen tungsten bulb
STYRO FOAM
|
|
|
|
|
|
|
|
|
